DESCRIPTION

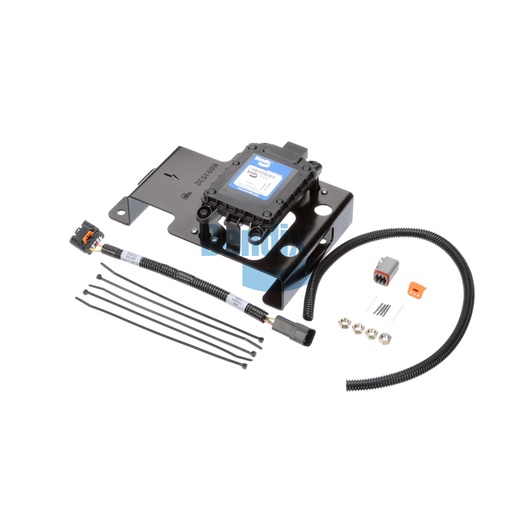

The Front Radar Assembly from Bendix is a cutting-edge component designed for advanced driver assistance systems, particularly in collision mitigation and warning applications. This radar assembly features a robust design with a maximum operating temperature of 185°F and a minimum temperature of -40°F, ensuring reliable performance in diverse environments. With a compact size of 169 mm in width and 267 mm in height, it integrates seamlessly into modern commercial vehicles, enhancing safety through real-time monitoring and detection capabilities. The use of this assembly helps to reduce the risk of accidents, making it a valuable addition to any fleet. When you need genuine Bendix OEM parts, Source One Parts Center stands out as the best resource for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
036-001-032: Sensor - Front, Collision Avoidance System
Width
169.0 mm (6.65 in)
Maximum Operating Temperature
185 °F (85 °C)
CAN Baud Rate
250 Kilobaud
Height
267.0 mm (10.51 in)
Length
267.0 mm (10.51 in)
Harmonized System (HS) Code
852610
Product Type
FLR-20
Country of Origin
France
Connector
MCON Interconnection System 10-Way Sealed Connector (Female)
Application
Wingman Advanced
Weight
4.19 lb
