K108587

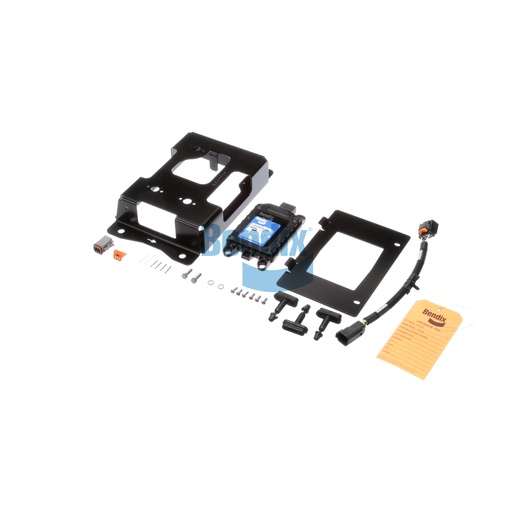

Front Radar Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Front Radar Assembly is a cutting-edge component for driver assistance systems, specifically designed to enhance safety and collision mitigation in commercial vehicles. Manufactured in France, this assembly is engineered with advanced technology to provide accurate detection and monitoring of surrounding vehicles. It features a compact design, measuring 6.46 inches in width and 3.74 inches in height, while weighing 6.17 pounds, making it easy to integrate into your vehicle's existing systems. The assembly operates effectively in varying environmental conditions, ensuring the highest level of safety for drivers and passengers alike. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best place to find quality components that meet rigorous industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
036-001-032: Sensor - Front, Collision Avoidance System
Width
164.0 mm (6.46 in)
Maximum Operating Temperature
185 °F (85 °C)
CAN Baud Rate
250 Kilobaud
Length
32.0 mm (1.26 in)
Harmonized System (HS) Code
852610
Height
95.0 mm (3.74 in)
Product Type
FLR-20
Country of Origin
France
Connector
MCON Interconnection System 10-Way Sealed Connector (Female)
Application
Wingman Advanced
Weight
6.17 lb
