K123762N000

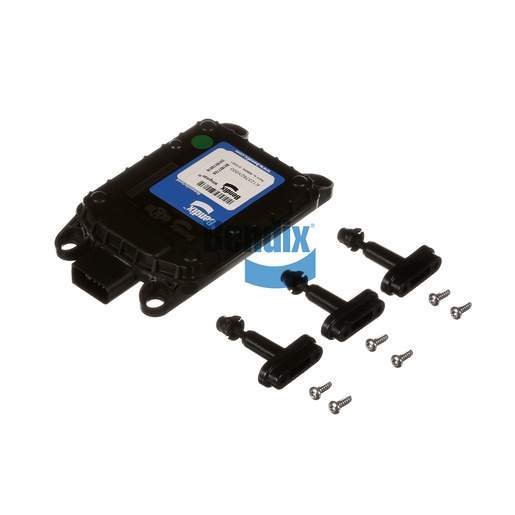

Front Radar Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Front Radar Assembly is a cutting-edge component designed for advanced driver assistance systems, enhancing safety through collision avoidance technology. This assembly is engineered to provide accurate data and feedback to the vehicle's systems, allowing for improved situational awareness on the road. Its durable design ensures reliable operation in various conditions, making it a valuable investment for fleet operators focused on safety and efficiency. Easy to install, this radar assembly integrates seamlessly into your vehicle's existing systems. When you need genuine Bendix OEM parts, Source One Parts Center is your premier destination for quality and reliability in commercial vehicle components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
036-001-032: Sensor - Front, Collision Avoidance System
Width
164.0 mm (6.46 in)
Maximum Operating Temperature
185 °F (85 °C)
Length
32.0 mm (1.26 in)
Harmonized System (HS) Code
852610
Height
95.0 mm (3.74 in)
CAN Baud Rate
AutoBaud
Software Version
BX182712
Product Type
FLR-21
Country of Origin
France
Connector
MCON Interconnection System 10-Way Sealed Connector (Female)
Application
Wingman Fusion
Weight
0.87 lb
