FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

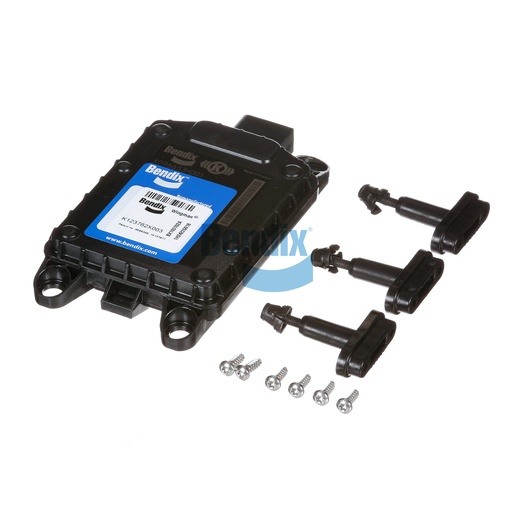

The Bendix Front Radar Assembly is a state-of-the-art component designed to enhance driver assistance systems in commercial vehicles. This radar system plays a crucial role in collision mitigation and adaptive cruise control, utilizing advanced technology to detect obstacles and maintain safe distances. With its compact design and multiple mounting options, it integrates seamlessly into various truck models, ensuring reliable operation in diverse driving conditions. The assembly is engineered to perform under a wide range of temperatures, from -40°F to 185°F, making it suitable for use in all climates. By investing in genuine Bendix parts from Source One Parts Center, you ensure that your vehicle is equipped with cutting-edge technology that improves safety and driving confidence.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
036-001-032: Sensor - Front, Collision Avoidance System
Width
164.0 mm (6.46 in)
Maximum Operating Temperature
185 °F (85 °C)
Length
32.0 mm (1.26 in)
Harmonized System (HS) Code
852610
Height
95.0 mm (3.74 in)
CAN Baud Rate
AutoBaud
Software Version
BX193102
Product Type
FLR-21
Country of Origin
France
Connector
MCON Interconnection System 10-Way Sealed Connector (Female)
Application
Wingman Fusion
Weight
1.1 lb
