K135729N000

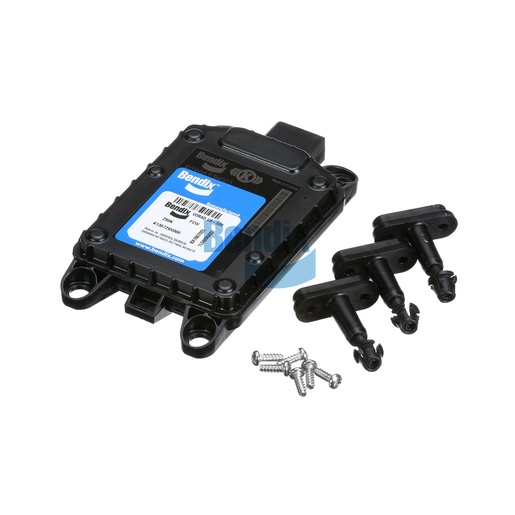

Front Radar Assembly
Bendix
AVAILABLE
More than 10 are currently available
Ships within 16-18 business days
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Front Radar Assembly is an advanced component designed for collision avoidance systems in commercial vehicles. This cutting-edge radar technology enhances driver safety by providing real-time information about the vehicle's surroundings, helping to prevent accidents. With a compact design and robust construction, this assembly is engineered to withstand harsh driving conditions while delivering accurate performance. Its integration into the vehicle’s safety systems improves overall operational efficiency, making it an essential part of modern trucking. For sourcing genuine Bendix OEM parts, including this innovative radar assembly, Source One Parts Center is your go-to resource, offering unmatched quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
036-001-032: Sensor - Front, Collision Avoidance System
Width
164.0 mm (6.46 in)
Maximum Operating Temperature
185 °F (85 °C)
CAN Baud Rate
250 Kilobaud
Length
32.0 mm (1.26 in)
Harmonized System (HS) Code
852610
Height
95.0 mm (3.74 in)
Software Version
BX160702
Application
Eaton VORAD
Country of Origin
France
Connector
MCON Interconnection System 10-Way Sealed Connector (Female)
Product Type
VS-500
Weight
1.1 lb
