$1,449.95
$1,739.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

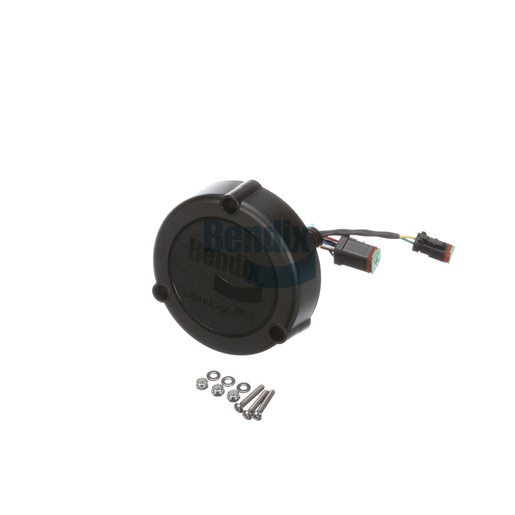

The Bendix Side Radar Assembly is a cutting-edge component of driver assistance systems, designed to enhance safety and collision mitigation for commercial vehicles. This radar system provides critical data about surrounding objects, helping to prevent accidents and improve overall driver awareness. With its durable construction and advanced technology, this assembly is built to withstand harsh conditions while delivering accurate performance. Its compact design allows for easy integration into various vehicle models, making it a versatile choice for fleet operators. For high-quality Bendix OEM parts, Source One Parts Center is your trusted source, where we stand behind our commitment to quality and customer satisfaction.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
036-001-011: Sensor Assembly - Side, Collision Avoidance System
Height
139.7 mm (5.5 in)
Width
177.8 mm (7.0 in)
Maximum Operating Temperature
185 °F (85 °C)
Length
203.0 mm (7.99 in)
Harmonized System (HS) Code
852610
CAN Baud Rate
AutoBaud
Application
BlindSpotter 2
Connector
Deutsch DT Series 2-Way Sealed Connector (Female)
Connector 2
Deutsch DT Series 6-Way Sealed Connector (Female)
Product Type
SLR20
Software Version
SW00293A
Country of Origin
United States
Weight
1.71 lb
