073647

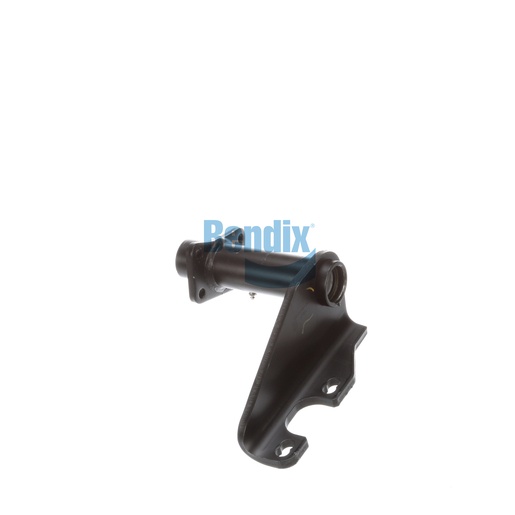

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance the performance of your foundation drum brakes with the Bendix Bracket Assembly, designed to provide robust support and stability in demanding conditions. This high-quality assembly weighs 13.65 pounds and is constructed from durable materials to withstand the rigors of commercial vehicle operation. Featuring adjustable lengths and nylon bushings, it facilitates precise installation and alignment, making it an ideal choice for fleet maintenance and repairs. This bracket assembly is essential for maintaining the proper functioning of your brake system, ensuring safety and efficiency on the road. For acquiring genuine Bendix parts, Source One Parts Center is the premier destination, ensuring quality and reliability for your commercial vehicle components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
6.00 IN - 6.50 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.65 lb
