073648

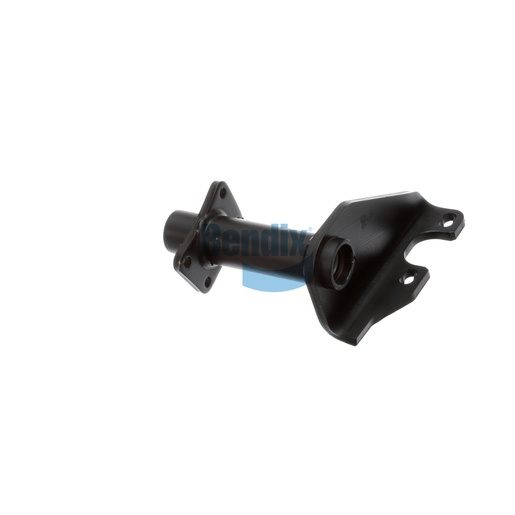

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an essential support structure designed for the effective installation of brake system components in commercial vehicles. Engineered from high-strength materials, this bracket ensures durability and stability, helping to maintain the alignment of critical brake elements such as air chambers and camshafts. With precise dimensions and a lightweight design, it allows for easy installation and effective performance under heavy-duty conditions. This assembly is a must-have for fleet maintenance, providing the necessary support to enhance the overall reliability of the vehicle's braking system. By keeping essential components securely in place, the Bracket Assembly helps optimize braking efficiency and safety on the road. For authentic Bendix OEM parts like this Bracket Assembly, Source One Parts Center is your trusted source, committed to delivering quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
6.00 IN - 6.50 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.56 lb
