089044

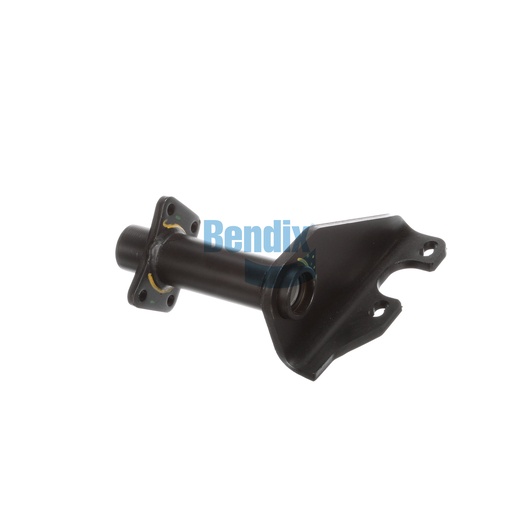

Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your commercial vehicle's braking system with the robust bracket assembly from Bendix, specifically designed for foundation drum brakes. This assembly features a full arm style with durable nylon bushings, ensuring optimal performance and longevity under the most demanding conditions. Designed to securely hold various components in place, this bracket assembly is integral to maintaining the stability and reliability of your braking mechanism. With precise dimensions that fit seamlessly into your vehicle's framework, installation is straightforward and hassle-free. Plus, the exceptional strength of this bracket means you can depend on it to perform reliably, mile after mile. For top-quality Bendix OEM parts, trust Source One Parts Center for the best selection and customer service in the industry.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
50° CW
Length (Slack Length)
6.00 IN - 6.50 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.65 lb
