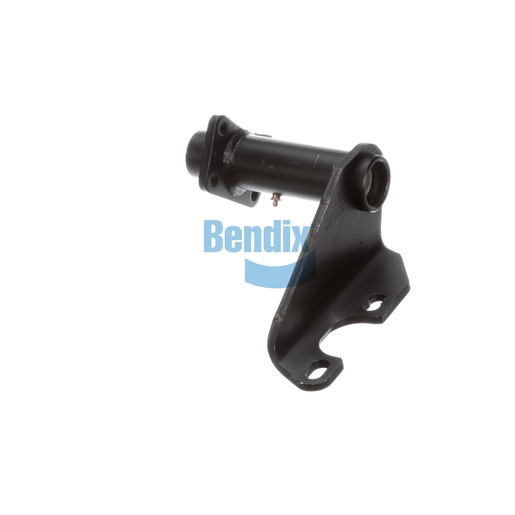

1001420N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component for securing various parts of the braking system in commercial vehicles. This assembly is designed with precision to ensure a perfect fit, providing stability and support for brake components. Constructed from high-quality materials, it is built to withstand the rigors of heavy-duty use, ensuring long-lasting performance and reliability. Its robust design not only enhances the safety of the braking system but also facilitates easy installation and maintenance. Trust Source One Parts Center for genuine Bendix OEM parts, where you can expect quality products and dedicated customer service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Width
265.0 mm (10.43 in)
Length
285.0 mm (11.22 in)
Height
292.0 mm (11.5 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12 lb
