1001554N

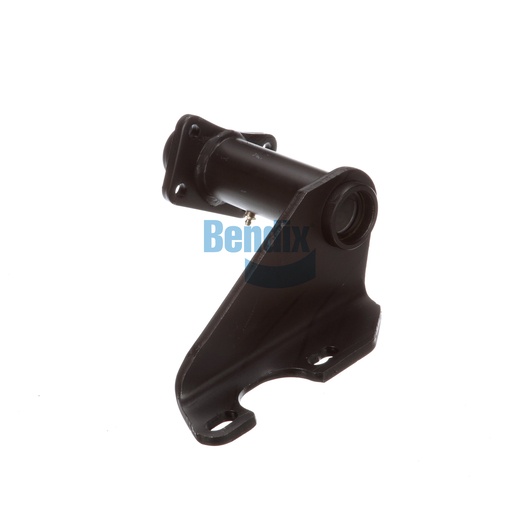

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is designed to support the essential components of the foundation drum brakes, ensuring stability and reliable operation. With a full arm style and durable nylon bushings, this assembly is engineered to withstand the demands of heavy-duty applications. Measuring 5.5 to 6 inches in slack length, it offers adjustable compatibility for various setups, making it adaptable to your specific needs. Its robust construction means it can endure the stress of daily use without compromising performance. Weighing in at 12.23 pounds, it is easy to handle and install, which is beneficial for fleet maintenance tasks. When sourcing Bendix OEM parts, Source One Parts Center stands out as the premier choice for authentic components that ensure your vehicle runs smoothly and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Length
285.0 mm (11.22 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.23 lb
