1001638

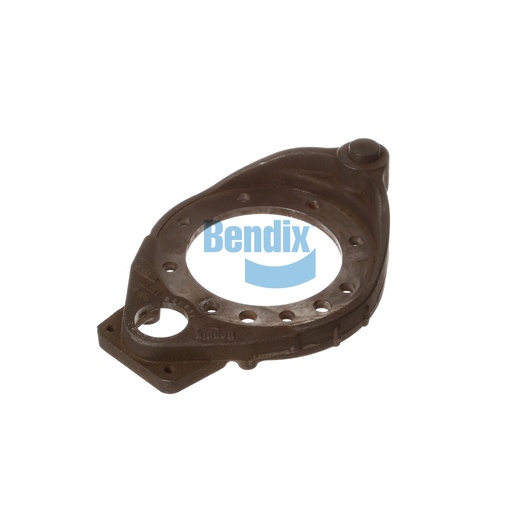

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix spider/pin assembly is an essential component in the foundation drum brakes of commercial vehicles, designed to ensure reliable and efficient braking performance. This assembly is expertly crafted for durability, providing the necessary structural integrity to support brake components effectively. Weighing approximately 17.77 pounds, it is built to withstand the demands of heavy-duty applications, ensuring long-lasting functionality. Its precision engineering helps minimize wear and tear on associated parts, contributing to overall maintenance efficiency. For the best selection of genuine Bendix OEM parts tailored for your commercial vehicles, Source One Parts Center is your trusted partner.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
17.77 lb
