1003042N

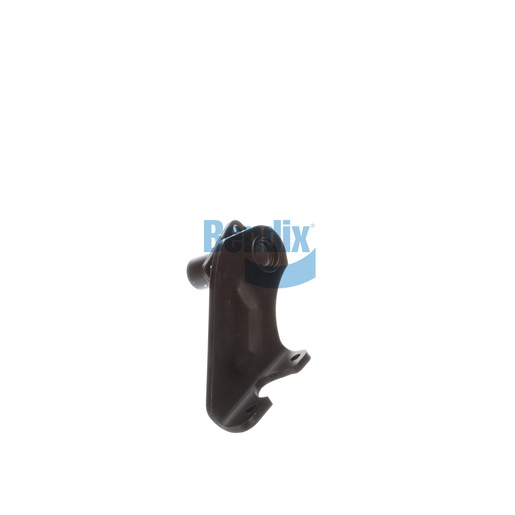

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a key component in the foundation drum brake system, designed to provide sturdy support and alignment for various brake parts. Weighing 12.99 lb, this assembly is made from high-strength materials to ensure durability and longevity, even under heavy-duty conditions. Its precise engineering allows for optimal positioning of brake components, promoting efficient operation and safety. The bracket's design is crucial for maintaining the overall integrity of the braking system, ensuring reliable performance in all driving situations. When looking for authentic Bendix parts, Source One Parts Center is the premier destination for quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length
219.0 mm (8.62 in)
Camshaft Bracket Angle
284° CCW
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
6.00 IN
Length (Centerline to Centerline) [IN]
8.63
Harmonized System (HS) Code
870830
Inboard Bushing
Bronze
Outboard Bushing
Bronze
Arm Style
Scalloped
Country of Origin
United States
Weight
12.99 lb
