1003140

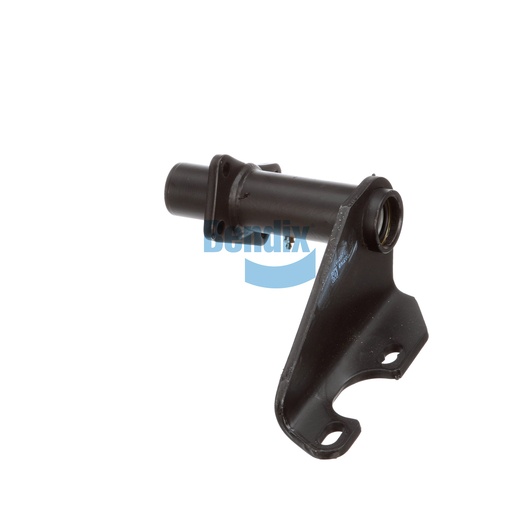

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an integral part of the braking system, providing necessary support and stability for various brake components in commercial vehicles. Designed for robust performance, this assembly ensures that critical brake elements remain securely in place, thereby enhancing the overall efficiency and safety of the braking system. Its durable construction makes it ideal for heavy-duty applications, effectively absorbing vibrations and stresses. The Bracket Assembly is compatible with a wide range of Bendix brake systems, making it a versatile choice for fleet maintenance and repairs. By ensuring proper alignment and support, this assembly contributes to the longevity of the braking system. For reliable sourcing of genuine Bendix OEM parts, Source One Parts Center is the best option, ensuring you get top-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
53° CCW
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.65 lb
