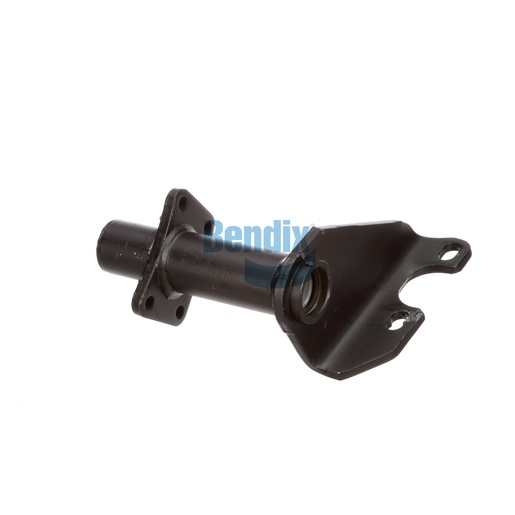

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical component designed to enhance the structural integrity of your foundation drum brakes. Built to last, this assembly features durable materials that resist wear and tear, ensuring optimal performance in demanding commercial environments. Weighing in at 5.3 kg, it provides the necessary strength to support your brake components, contributing to a safer and more reliable braking system. The precision engineering of this bracket assembly ensures a perfect fit, allowing for straightforward installation and maintenance. This part is essential for maintaining your vehicle’s braking efficiency and safety. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring quality and reliability every time.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
53° CW
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.68 lb
