1004709N

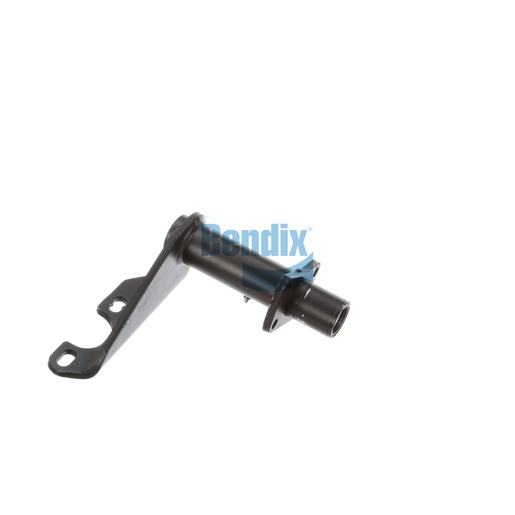

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide robust support for air drum brakes, ensuring optimal performance and safety in commercial vehicles. Crafted from high-quality materials, this bracket assembly secures brake components in place, minimizing movement and wear during operation. This stability is essential for maintaining consistent braking performance, especially under heavy loads and challenging road conditions. The design of the bracket allows for straightforward installation, making it an ideal choice for fleet maintenance and repair shops. By choosing genuine Bendix parts from Source One Parts Center, you are ensuring that your vehicles are equipped with the best quality components available, enhancing performance and reliability on the road.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Height
1.0 mm (0.04 in)
Length
1.0 mm (0.04 in)
Width
1.0 mm (0.04 in)
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.25
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.3 lb
