1006204N

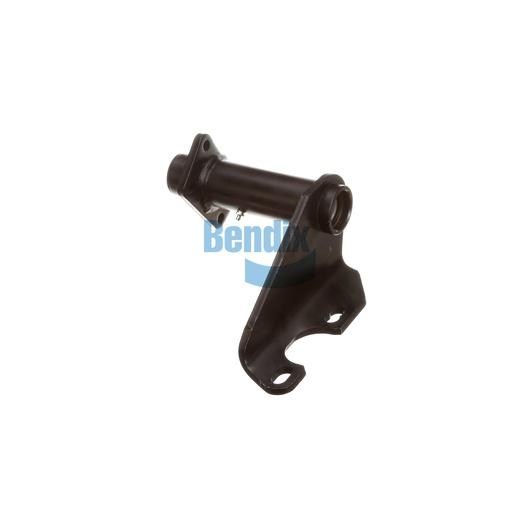

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a crucial component designed for optimal performance in commercial vehicles, particularly in foundation drum brake systems. This assembly features durable nylon bushings that enhance its longevity and reliability under various driving conditions. With a slack length adjustable between 5.50 inches to 6.00 inches, it provides flexibility in installation, ensuring a perfect fit across different vehicle models. The camshaft bracket angle of 35° CCW offers precise alignment for seamless brake operation, improving the overall braking efficiency. Weighing only 5.9 kg (12.9 lb), this lightweight yet sturdy bracket is engineered for ease of handling during installation. Upgrade your truck's braking system with this high-quality Bracket Assembly, crafted in the United States for guaranteed durability. For genuine Bendix OEM parts that ensure your commercial vehicle runs smoothly and safely, Source One Parts Center is your best choice.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Camshaft Bracket Angle
35° CCW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.9 lb
