1006546

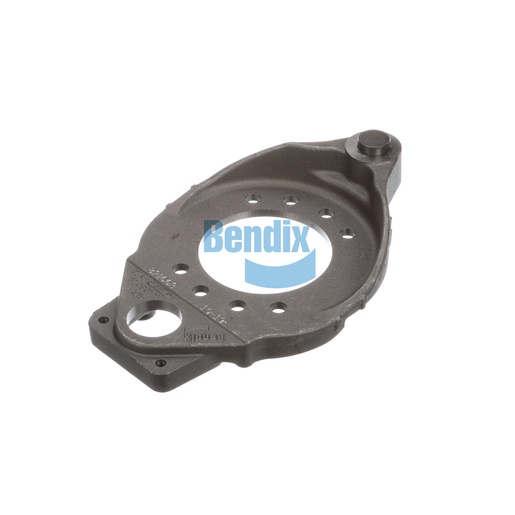

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spider / Pin Assembly is a critical component in the foundation drum brake system, responsible for connecting various brake elements to ensure effective operation. With a net weight of 8.8 kg, this assembly is designed for durability and reliability, capable of withstanding the demands of heavy-duty applications. It plays a vital role in maintaining the integrity of the braking system, which is essential for safe and efficient vehicle operation. Its robust construction allows for straightforward installation and maintenance, making it a valuable addition to any commercial vehicle. Source One Parts Center is the go-to source for genuine Bendix OEM parts, ensuring that your vehicle is equipped with the best components available.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
19.49 lb
