1006861N

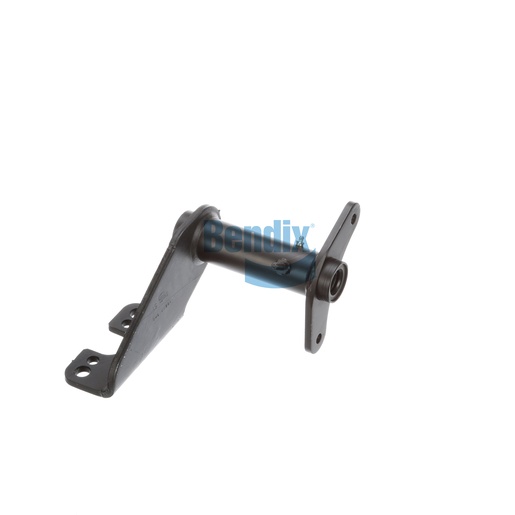

Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is designed to provide robust support for your truck's braking system, ensuring enhanced reliability and performance. This assembly features a scalloped arm style and is constructed from high-quality materials, making it an ideal choice for heavy-duty applications. It effectively secures the camshaft and air chamber, contributing to the smooth operation of the brake system. With its easy installation process and precise engineering, this bracket assembly helps reduce maintenance time and costs, making it a smart investment for fleet managers. Additionally, the durable design ensures long-lasting performance even in the most demanding environments. For those seeking quality and dependability, Source One Parts Center is the go-to source for authentic Bendix OEM parts, providing unbeatable value for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length (Centerline to Centerline) [IN]
10.71
Length
272.0 mm (10.71 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
323° CW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
830230
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.12 lb
