1008160

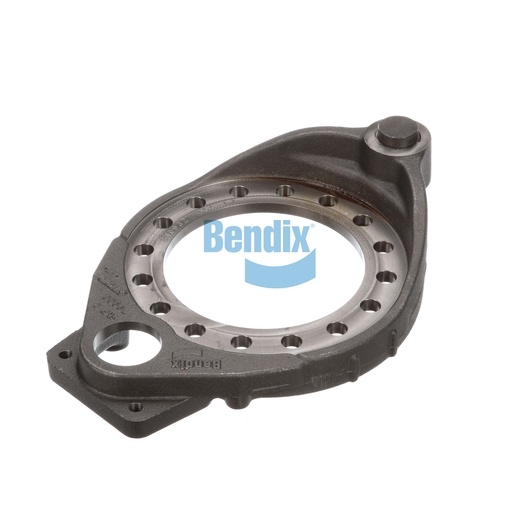

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spider / Pin Assembly is a vital component in the foundation drum brake system, providing essential support and alignment for brake operation. Weighing 8.1 kg (17.77 lb), this assembly is designed for durability, ensuring reliable performance under the demanding conditions of commercial vehicle applications. The robust design allows for stability and precise alignment, which is critical for effective braking performance. This assembly is manufactured to meet strict quality standards, making it a dependable choice for fleet operators. Source One Parts Center is your trusted source for genuine Bendix OEM parts, providing top-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
17.77 lb
