1008319

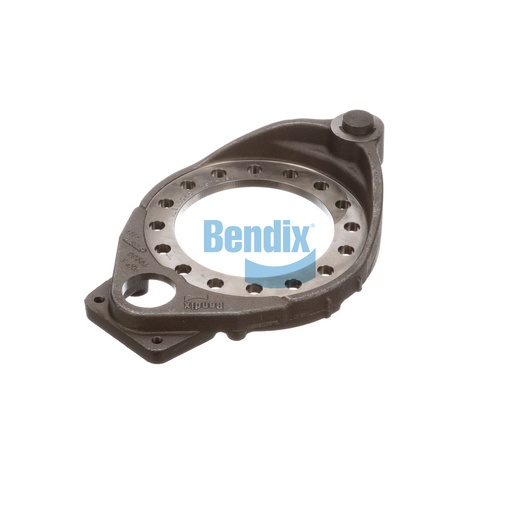

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spider / Pin Assembly from Bendix is an essential part of the foundation drum brake system, crucial for maintaining the structural integrity of the braking mechanism. Designed to provide a secure and reliable connection between the brake components, this assembly ensures effective brake operation, which is vital for safety in heavy-duty applications. Its robust construction is made to endure the challenges of the road, enhancing the longevity and performance of your braking system. Regular inspections and replacements of this assembly are important for maintaining optimal braking efficiency. When you need genuine Bendix OEM parts, Source One Parts Center is your best source for quality and reliability.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
17.35 lb
