1009059N

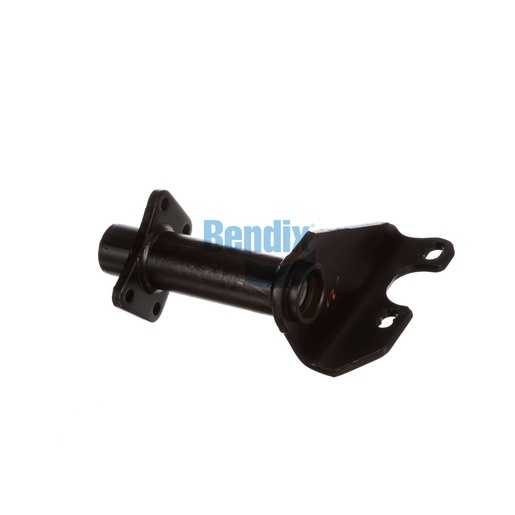

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered for the foundation drum brakes of commercial vehicles, providing essential support and durability. Weighing 6.8 kg (14.99 lb), this assembly is designed to withstand the demands of heavy-duty applications while ensuring optimal performance of the braking system. Featuring nylon bushings, it reduces friction and wear, thereby enhancing the longevity of both the bracket and the entire braking assembly. Its precise design allows for easy installation and compatibility with various Bendix systems, making it the ideal choice for fleet maintenance. By incorporating this high-quality bracket assembly into your braking system, you ensure improved stability and reliability, critical for safe vehicle operation. When purchasing Bendix parts, Source One Parts Center stands out as the leading provider of genuine OEM components, ensuring you receive top-notch quality.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.99 lb
