804436N

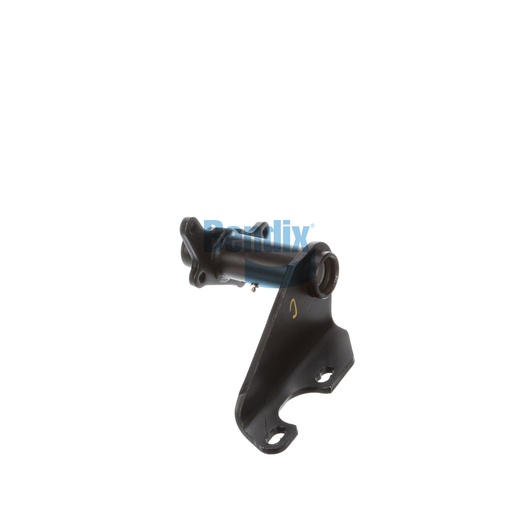

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly from Bendix is expertly engineered to provide robust support for foundation drum brakes in commercial vehicles. Its full arm style and durable nylon bushings ensure a secure and stable connection, which is critical for maintaining optimal braking performance. Designed with a camshaft bracket angle of 56° CCW and an adjustable slack length ranging from 5.50 to 6.00 inches, this assembly is versatile enough to meet various application requirements. Weighing around 12.1 pounds, it is constructed to withstand the demanding conditions of heavy-duty use, thus promoting safety and reliability on the road. The thoughtful design simplifies installation and maintenance, making it a practical choice for fleet operators. For those looking to ensure the highest quality in their vehicle components, Source One Parts Center is the best destination for genuine Bendix OEM parts, providing confidence in every purchase.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length
268.0 mm (10.55 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.1 lb
