This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

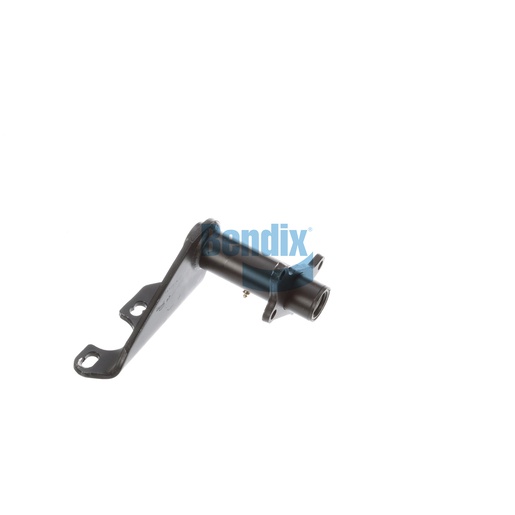

The Bendix Bracket Assembly is an essential part of the foundation drum brake system, designed to provide support and stability for braking components. Featuring a full arm style and durable nylon bushings, this bracket assembly ensures precise alignment and optimal performance of the brake system. Weighing approximately 13.01 pounds, its robust construction is designed to endure the challenges of heavy-duty applications, promoting improved braking efficiency. The thoughtful design includes features that facilitate easy installation and maintenance, making it a preferred choice among fleet operators. With dimensions that allow for seamless integration into existing systems, this bracket assembly plays a crucial role in enhancing the overall safety of your vehicle. For sourcing Bendix parts, Source One Parts Center is the best destination for genuine OEM components that deliver reliable performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length
268.0 mm (10.55 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.01 lb
