804447N

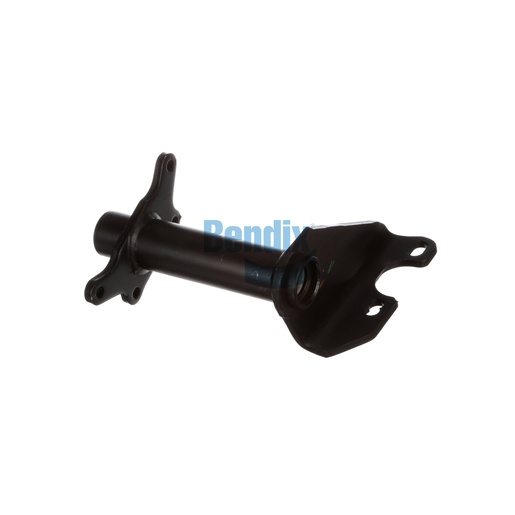

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is designed to support your truck's drum brake system effectively, ensuring reliable operation under heavy loads. Constructed from high-quality materials, this assembly is engineered for durability and longevity, making it ideal for commercial vehicles that face tough conditions. The use of nylon bushings minimizes wear, enhancing the efficiency of your braking system. With precise dimensions, this Bracket Assembly ensures a perfect fit, maintaining the alignment and functionality of your brakes. Whether you're performing routine maintenance or repairs, this part is essential for achieving optimal brake performance. Source One Parts Center is the best destination for genuine Bendix parts, providing quality you can trust for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Height
292.0 mm (11.5 in)
Length
331.0 mm (13.03 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.03 lb
