804826N

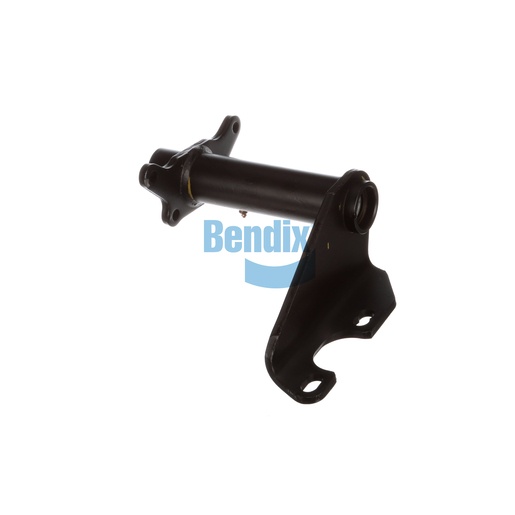

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a crucial component designed to support your truck's drum brake system effectively. Constructed from durable materials, this assembly guarantees long-lasting performance, even under the most demanding conditions. With its nylon bushings, it minimizes wear and enhances the overall efficiency of your brake components. This assembly is carefully engineered to ensure a perfect fit and alignment, essential for maintaining effective braking power. Whether you're maintaining a fleet or working on a single vehicle, this Bracket Assembly provides the reliability and strength needed for optimal brake performance. For all your Bendix parts, Source One Parts Center is the trusted destination for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Height
292.0 mm (11.5 in)
Length
342.0 mm (13.46 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
80° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.5 lb
