804864

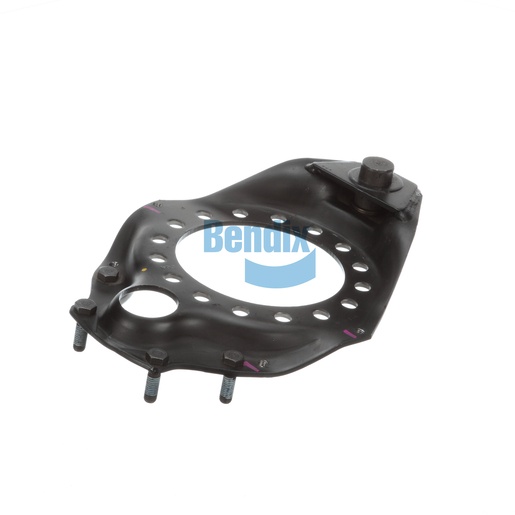

Spider / Pin Assembly
25 Pack
BendixBACK ORDERED
Please contact us for information on lead time
$429.95
$515.94
Minimum Quantity 25
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spider / Pin Assembly plays a crucial role in the functioning of foundation drum brakes, serving as the pivotal connection between the brake shoes and the brake mechanism. This assembly is meticulously engineered to withstand the rigors of heavy-duty applications, ensuring reliable performance under pressure. Its design allows for smooth operation, enhancing the overall braking efficiency of commercial vehicles. With a robust construction and precise dimensions, the assembly guarantees a secure fit, which is essential for maintaining optimal braking performance and safety. The lightweight yet durable materials used in this assembly ensure longevity and resilience, making it suitable for various commercial vehicle applications. For those committed to upholding the highest standards of safety and reliability, Source One Parts Center is the ultimate destination for authentic Bendix OEM parts, providing peace of mind with every purchase.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
11.05 lb
