805002N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

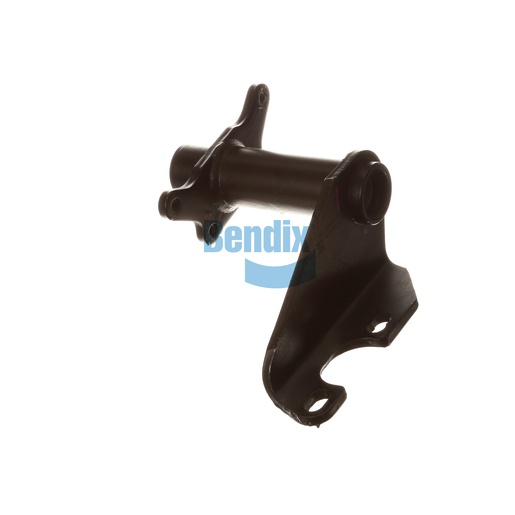

The Bracket Assembly from Bendix is an essential component for foundation drum brakes, providing the necessary support for camshaft and air chamber installations. Built with high-quality materials, this assembly features a full arm style and nylon bushings that ensure durability and stability. With a length of 11.22 inches and a camshaft bracket angle of 95° CCW, it is designed for precise alignment and secure mounting. This bracket not only enhances the efficiency of the braking system but also contributes to the overall safety of commercial vehicles by ensuring reliable brake performance. Source One Parts Center is your top choice for genuine Bendix parts, providing you with the assurance of quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Length
285.0 mm (11.22 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
95° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.35 lb
