$219.95
$263.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

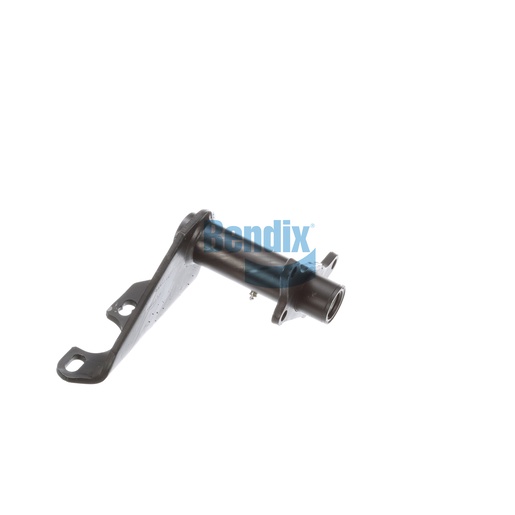

The Bendix Bracket Assembly is expertly crafted to support foundation drum brakes in commercial vehicles, ensuring robust performance during heavy-duty operations. Manufactured in the United States, this assembly features a full arm style with nylon bushings, designed to minimize wear while maximizing strength. The 56° CW camshaft bracket angle provides optimal alignment, essential for effective brake engagement and operational efficiency. With convenient slack length adjustments and a weight of 12.99 pounds, this bracket is easy to handle and install, streamlining maintenance processes. By using genuine Bendix parts, you ensure the reliability and safety of your braking system. Source One Parts Center is your top choice for high-quality OEM components, guaranteeing peace of mind with every purchase.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Length
285.0 mm (11.22 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.99 lb
