805150N

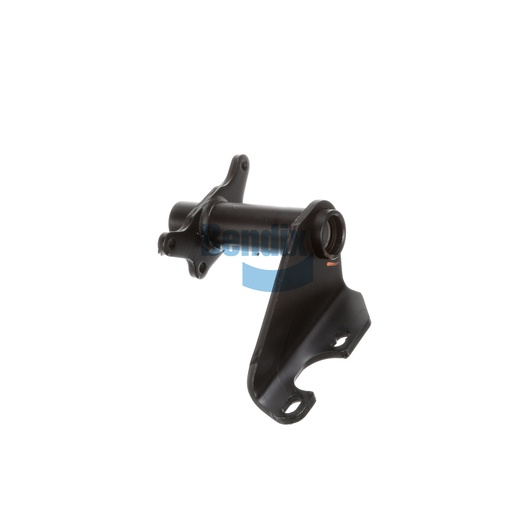

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component designed to support various parts of your truck's braking system, ensuring stability and reliability during operation. Crafted with durable materials, this bracket assembly features nylon bushings for enhanced resilience and reduced wear, making it suitable for heavy-duty applications. Its design allows for easy installation, simplifying the maintenance process while ensuring that all components remain securely in place. Measuring at a length of 11.22 inches, this bracket assembly is engineered to meet the rigorous demands of commercial vehicles. By investing in this essential part, you enhance the safety and performance of your truck's braking system. For quality and service, Source One Parts Center is the best choice for purchasing genuine Bendix OEM parts.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Length
285.0 mm (11.22 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.3 lb
