805151N

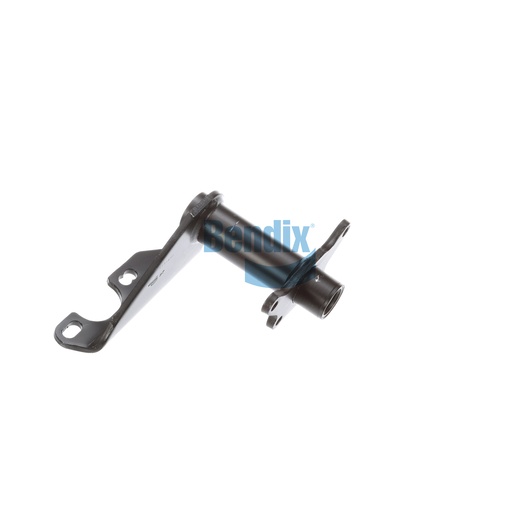

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an integral support component for your vehicle's braking system, meticulously designed to ensure stability and secure positioning of various brake components. Crafted from high-strength materials, this assembly offers durability and longevity, making it ideal for the demands of heavy-duty applications. Its precise design facilitates straightforward installation, allowing you to maintain your vehicle's braking system with ease. By opting for this genuine Bendix part, you ensure that your vehicle operates safely and effectively. Source One Parts Center is your best choice for authentic Bendix OEM parts, providing quality solutions tailored to your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.22
Length
285.0 mm (11.22 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.01 lb
