805364

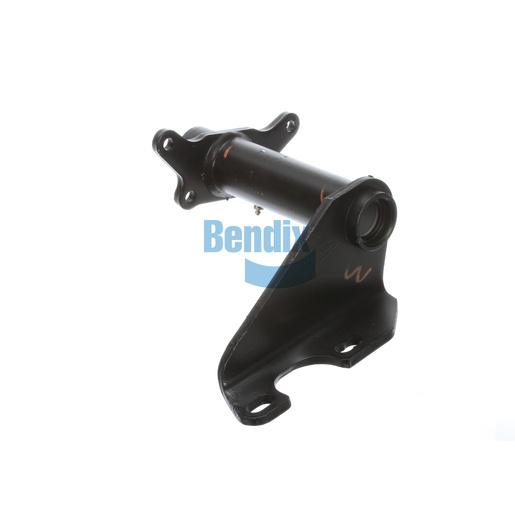

Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly by Bendix is a vital component for foundation drum brakes, providing the necessary support and stability for optimal brake function. This part is designed with precision, ensuring it meets the rigorous demands of commercial trucking environments. With a net weight of 6.4 kg, it is built from durable materials to withstand high-stress conditions and provide long-lasting performance. The assembly is engineered to facilitate easy installation and secure mounting, making it an ideal choice for both repair and upgrade projects. Its robust construction ensures that it can handle the forces applied during braking, thereby contributing to the overall safety and efficiency of your vehicle. By choosing Bendix, you ensure that your braking system remains reliable and effective. For genuine Bendix OEM parts, Source One Parts Center is the best choice, providing a reliable source for high-quality commercial vehicle components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Height
292.0 mm (11.5 in)
Length
330.0 mm (12.99 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
72° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.09 lb
