805364N

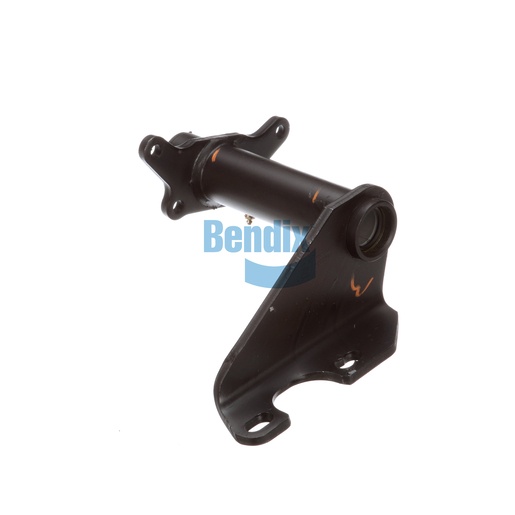

Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a crucial part of the foundation drum brake system, providing essential support and alignment for the brake components. This assembly is designed to withstand the tough conditions of commercial truck applications, ensuring optimal performance and durability. By securely holding the camshaft in place, the Bracket Assembly ensures that your braking system operates effectively, enhancing overall safety and performance. Regular inspection and timely replacement of the Bracket Assembly can prevent brake system issues and prolong the life of your vehicle's braking components. Investing in high-quality parts like this assembly not only ensures reliable braking performance but also reduces maintenance costs in the long run. Source One Parts Center is your premier source for genuine Bendix OEM parts, providing you with top-quality components that meet or exceed your vehicle’s specifications.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Height
292.0 mm (11.5 in)
Length
330.0 mm (12.99 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
72° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.09 lb
