805964N

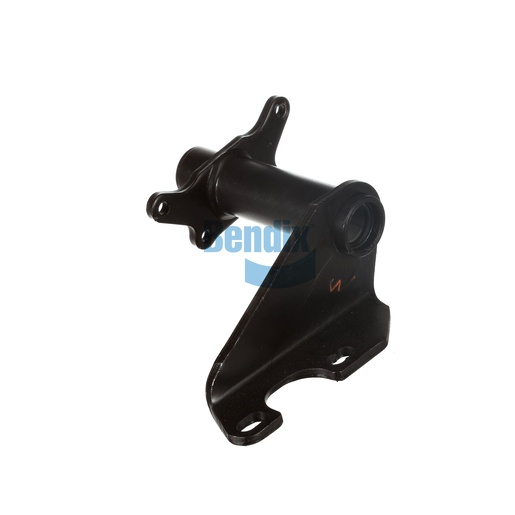

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a key part of the Bendix foundation drum brake system, providing essential support and stability for the camshaft. Designed with high-quality nylon bushings, this assembly minimizes wear and ensures a secure fit, which is crucial for maintaining effective brake performance. The assembly features a length range of 5.50 to 6.00 inches, allowing for precise adjustments to suit specific vehicle configurations. With its robust construction and easy installation, this bracket assembly is ideal for both fleet maintenance and individual repairs. Ensuring that you have genuine Bendix parts like this bracket assembly will help prolong the life of your braking system and enhance safety on the road. For authentic Bendix OEM parts, Source One Parts Center stands out as your premier supplier, offering competitive pricing and outstanding customer support.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
98° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12 lb
