806034N

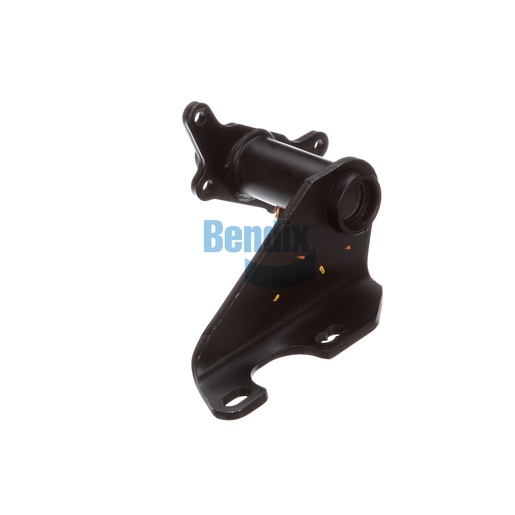

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital part of the foundation drum brake system, designed to provide the necessary support and alignment for critical brake components. With its full-arm style and nylon bushings, this assembly is engineered for durability, ensuring long-lasting performance even under the most demanding conditions. Weighing 5.4 kg, it allows for easy installation, helping to streamline the maintenance process of your commercial vehicle. The robust construction ensures that it can handle the stresses of daily operation, contributing to the overall safety and reliability of the braking system. For those in need of high-quality Bendix OEM parts, Source One Parts Center is the best place to shop, providing authentic components that meet stringent performance standards.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.22
Length
260.0 mm (10.24 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.81 lb
