806326N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

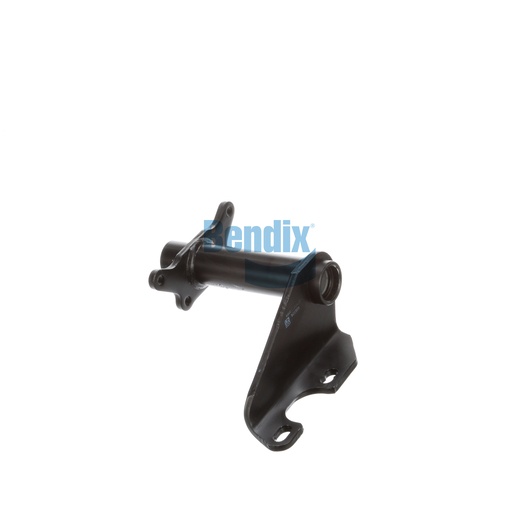

The Bendix Bracket Assembly is expertly crafted to provide robust support for air chambers and camshafts in your vehicle's braking system. Designed with a full arm style and high-quality nylon bushings, this assembly is built to withstand the demanding conditions of heavy-duty applications. Its precise engineering ensures stability and minimizes wear, which is essential for maintaining effective braking performance. With a gusset angle of 90° CCW, this assembly optimizes the alignment of braking components, enhancing overall efficiency and safety. At Source One Parts Center, we are dedicated to supplying you with genuine Bendix OEM parts, ensuring your commercial vehicles operate at their best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.00
Height
292.0 mm (11.5 in)
Length
330.0 mm (12.99 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.99 lb
