806764N

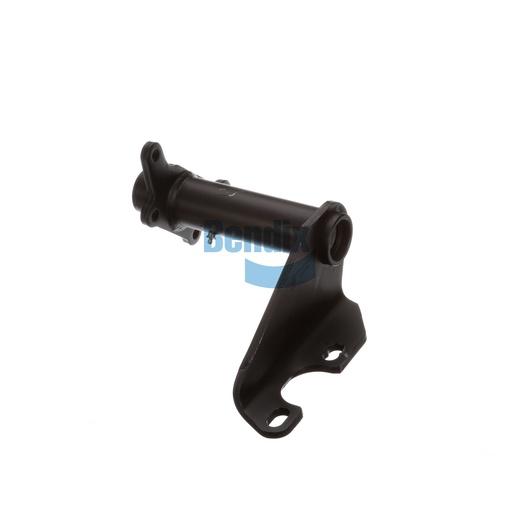

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is essential for securing various components in your truck's braking system, ensuring stability and reliability during operation. This bracket, with notable dimensions of 365.0 mm in width and a net weight of 5.9 kg, is built to endure the rigors of heavy-duty applications. Its durable construction aids in maintaining alignment and proper functioning of brake components, which is crucial for overall vehicle safety. Designed to fit a range of Bendix drum brake systems, this assembly simplifies installation and enhances maintenance efficiency. With its robust design, it minimizes the likelihood of wear and tear, providing long-lasting performance. When it comes to acquiring high-quality Bendix OEM parts, Source One Parts Center is the premier choice, offering a wide selection and excellent customer support.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.81
Height
292.0 mm (11.5 in)
Length
326.0 mm (12.83 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
45° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.05 lb
