806765N

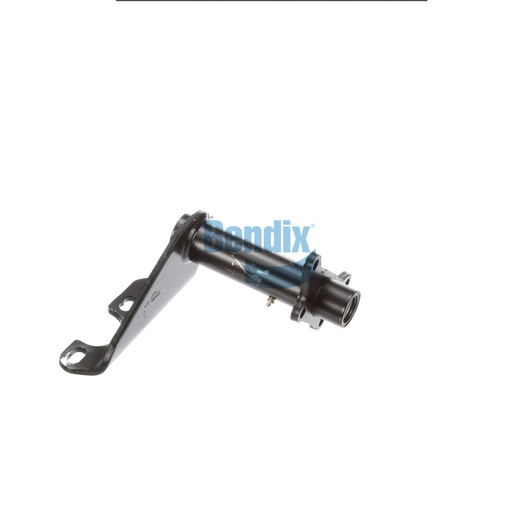

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed for optimal support and secure mounting of your braking systems, playing a crucial role in maintaining vehicle safety. Made from high-quality materials, this assembly is engineered to withstand the rigorous demands of heavy-duty applications. Weighing 5.9 kg, it allows for straightforward installation, ensuring that all components are positioned correctly for efficient braking performance. The durability and reliability of this bracket assembly make it a key part of any commercial vehicle's braking system. For all your genuine Bendix parts, including this bracket assembly, Source One Parts Center is the best choice for quality and dependability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.81
Height
292.0 mm (11.5 in)
Length
326.0 mm (12.83 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
45° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.01 lb
