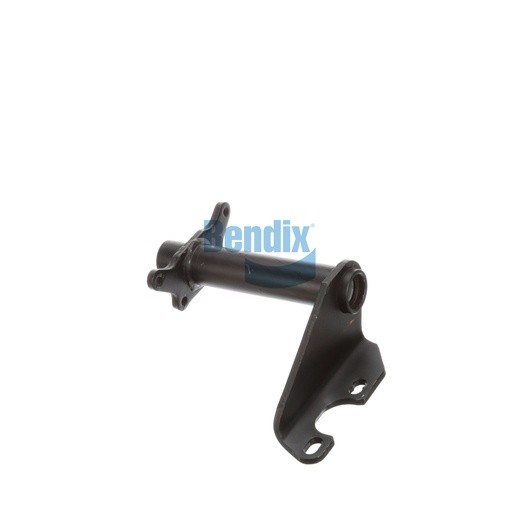

807138N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is meticulously engineered to support essential components in the foundation drum brake system, ensuring proper function and alignment. This assembly is designed with full-arm style and features durable nylon bushings for extended service life, making it a reliable choice for heavy-duty applications. With dimensions of 371 mm in length and a weight of 6.6 kg, it offers a robust solution for maintaining the integrity of your brake system. This bracket not only facilitates easy installation but also ensures that the brake components operate smoothly, contributing to overall vehicle safety. When you choose Bendix's OEM Bracket Assembly, you are guaranteed quality and performance. Source One Parts Center is recognized as the top provider of genuine Bendix parts, ensuring you get the best for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.62
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
371.0 mm (14.61 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.5 lb
