807139N

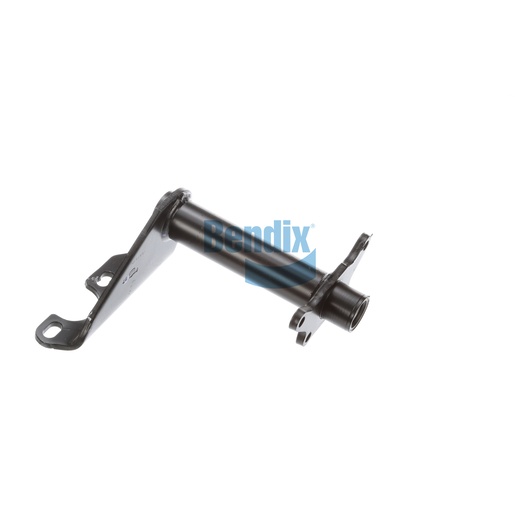

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component for foundation drum brakes, providing essential support and stability for the braking system. This bracket is expertly designed to secure various components, ensuring they operate effectively under demanding conditions. Constructed from high-quality materials, it offers durability and reliability, making it suitable for heavy-duty applications. The assembly features a lightweight design, weighing 6.6 kg, which facilitates easy installation without sacrificing strength. Its precise engineering ensures that components are optimally positioned, enhancing the overall performance of the braking system. By investing in this bracket assembly, you're ensuring that your brakes function safely and efficiently, contributing to the overall safety of your commercial vehicle. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing you with quality assurance and reliability for your vehicle's needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.62
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
372.0 mm (14.65 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.61 lb
