807449N

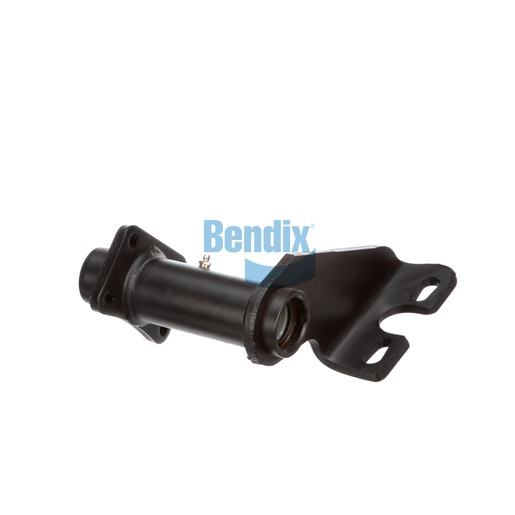

Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical support structure for the air chamber and camshaft in drum brake systems, manufactured with precision to ensure maximum durability and performance. Featuring a scalloped arm style and nylon bushings, this bracket assembly provides a secure and stable platform for essential braking components. With a camshaft bracket angle of 323° CW, it allows for optimal alignment and operation under various load conditions. Its dimensions, including a centerline length of 10.56 inches, make it adaptable for multiple vehicle models, enhancing its versatility. By ensuring the proper positioning of brake components, this assembly not only improves braking efficiency but also extends the life of the system, reducing overall maintenance needs. When it comes to purchasing genuine Bendix OEM parts, Source One Parts Center stands out as the go-to source for quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length
268.0 mm (10.55 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
323° CW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.5 lb
