807585

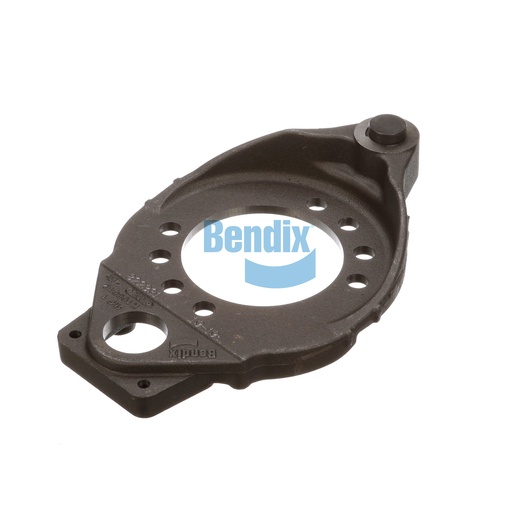

Spider / Pin Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spider / Pin Assembly is essential for your vehicle's drum brake system, providing the necessary support for brake shoes to function effectively. This robust assembly is designed to withstand the rigors of heavy-duty use, ensuring durability and reliability. Weighing 8.3 kg (18.3 lb), it is engineered for easy installation, which saves time and labor costs during maintenance. The assembly's design maximizes braking performance by ensuring proper alignment and function of the brake components. This part is vital for maintaining optimal performance and safety on the road. Choose Source One Parts Center for your Bendix OEM parts to ensure you receive the highest quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
18.3 lb
