Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

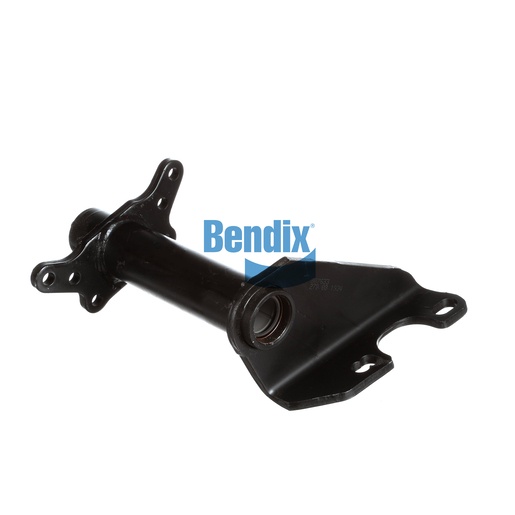

The Bracket Assembly by Bendix is a crucial component designed to provide stability and support within foundation drum brake systems. Engineered with precision, this assembly features durable nylon bushings that ensure smooth operation and reduce vibration, contributing to a longer lifespan for your braking components. Its dimensions of 365 mm in width, 292 mm in height, and 337 mm in length make it an ideal fit for various truck models, while its weight of 6.1 kg offers a robust yet manageable solution for installation. This bracket assembly is designed to withstand the rigors of heavy-duty applications, ensuring that your braking system functions effectively under pressure. For those looking to buy genuine Bendix OEM parts, Source One Parts Center is the best place to find reliable and high-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.25
Height
292.0 mm (11.5 in)
Length
337.0 mm (13.27 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
79° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.38 lb
