808272N

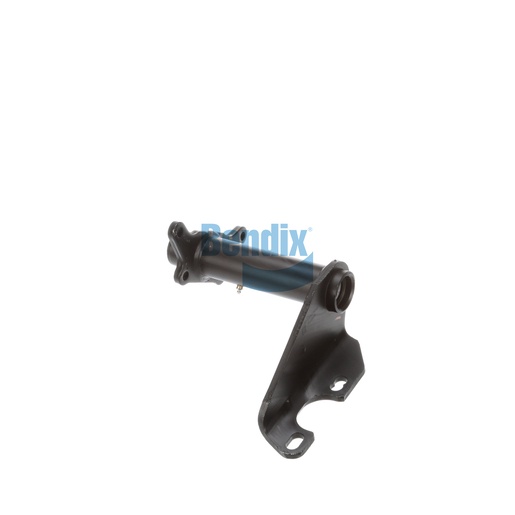

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an integral component of the foundation drum brake system, meticulously designed to offer optimal support and alignment for crucial braking elements. Its full arm style and durable nylon bushings ensure resilience and longevity, capable of withstanding the rigorous demands of heavy-duty applications. Weighing 6.1 kg, this assembly is crafted for straightforward installation, making routine maintenance more efficient. The robust design guarantees that it maintains alignment under various operational stresses, enhancing the overall safety and efficiency of the braking system. When sourcing genuine Bendix OEM parts, Source One Parts Center is the ideal choice, providing authentic components that ensure exceptional performance and peace of mind.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Height
292.0 mm (11.5 in)
Length
342.0 mm (13.46 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
54° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.45 lb
