808273N

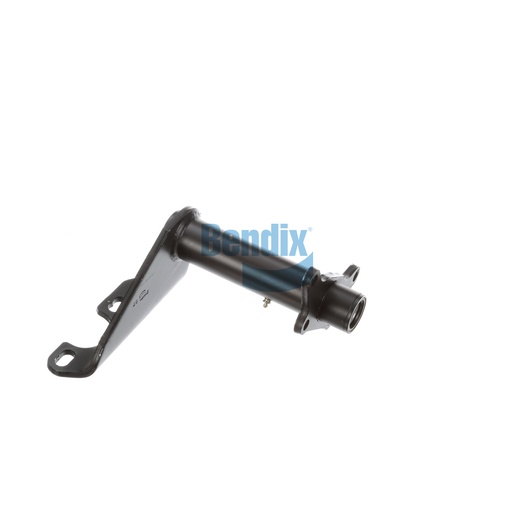

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is expertly crafted to provide essential support for air chambers and camshafts in foundation drum brake systems. This assembly features high-quality nylon bushings to reduce friction, ensuring longevity and efficient operation of your braking components. With an adjustable slack length and a camshaft bracket angle of 54° CW, this bracket is versatile enough to fit a range of applications. Its durable construction makes it ideal for heavy-duty use, contributing to the overall safety and performance of your vehicle's braking system. By choosing Source One Parts Center for your Bendix OEM parts, you can trust that you're getting reliable components that meet the highest standards of quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Height
292.0 mm (11.5 in)
Length
342.0 mm (13.46 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
54° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.5 lb
