808397

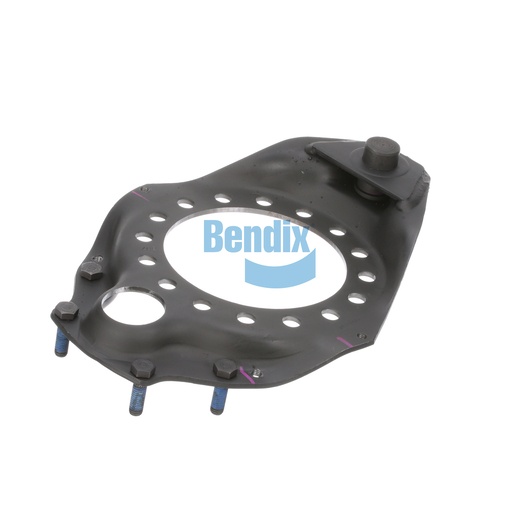

Spider / Pin Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix spider/pin assembly is an integral component of the braking system, designed to provide stability and alignment for the brake shoes during operation. This assembly ensures that your brakes engage correctly, which is critical for maintaining safety and performance under heavy loads. Crafted with durability in mind, it withstands the rigorous demands of commercial vehicles, ensuring long-lasting functionality. Weighing just 11.0 pounds, the assembly is lightweight and easy to install, making it a practical choice for fleet maintenance. By opting for a genuine Bendix part, you can trust that your vehicle's braking system will perform reliably. Source One Parts Center is your premier source for authentic Bendix OEM parts, guaranteeing you receive only the best for your commercial vehicle.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
11 lb
