809480N

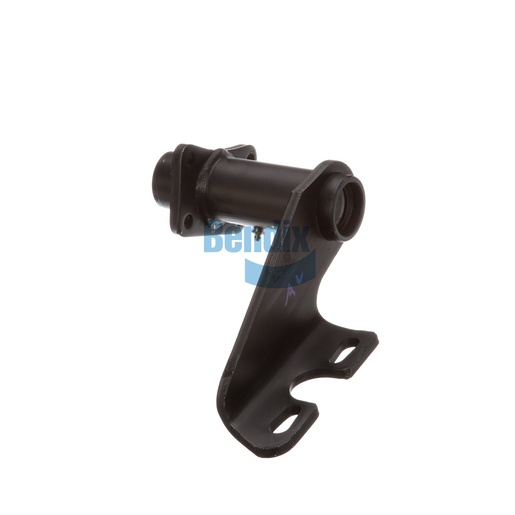

Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is specifically designed to support the components of foundation drum brakes, ensuring optimal alignment and stability. Its robust design features nylon bushings that minimize wear and friction, enhancing the overall efficiency of the braking system. With a scalloped arm style and a gusset angle of 40 degrees, this bracket is engineered for durability, making it an ideal choice for heavy-duty applications. The assembly is lightweight yet sturdy, weighing only 10.56 pounds, allowing for easy installation and maintenance. Its compatibility with various camshaft configurations makes it a versatile solution for fleet operators. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you receive high-quality components that enhance your vehicle’s braking performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.03
Length
255.0 mm (10.04 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Camshaft Bracket Angle
58° CCW
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.56 lb
