809969N

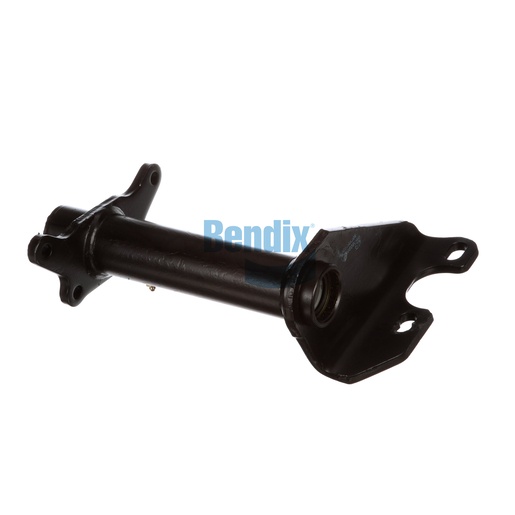

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital support structure within the foundation drum brake system, designed to secure and stabilize brake components during operation. This assembly features a durable design with nylon bushings that minimize wear and friction, enhancing the overall efficiency of the braking system. Its specific dimensions and robust construction ensure compatibility with various commercial vehicle configurations, making it an ideal choice for fleet maintenance and repairs. By maintaining the integrity of the brake system, this bracket assembly contributes to optimal braking performance and safety on the road. Investing in a high-quality bracket assembly not only supports the longevity of your braking components but also enhances the overall functionality of your vehicle. Source One Parts Center is the premier source for genuine Bendix OEM parts, ensuring that you receive the best quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
100° CW
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.2 lb
