810147N

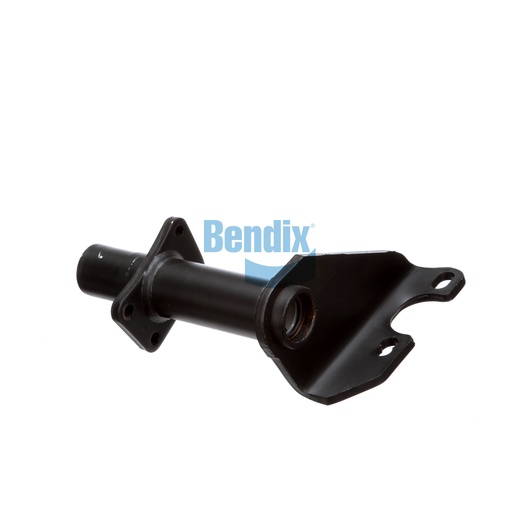

Bracket Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly by Bendix is a premier solution for maintaining the integrity of foundation drum brakes in commercial vehicles. This high-quality assembly features a full arm style, crafted with precision to provide optimal support and stability during braking operations. Designed with nylon and bronze bushings, it ensures durability and long-lasting performance even in challenging environments. At a slack length of 5.50 inches to 6.00 inches and a camshaft bracket angle of 72° CW, it allows for precise alignment and effective braking. Weighing 5.8 kg, it is light enough for easy installation, reducing maintenance time. The assembly's thoughtful design makes it compatible with numerous vehicle models, enhancing its utility across different fleet types. When it comes to sourcing genuine Bendix parts, Source One Parts Center is the ultimate destination, providing unmatched quality and customer service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Height
292.0 mm (11.5 in)
Length
318.0 mm (12.52 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
72° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.7 lb
