810344N

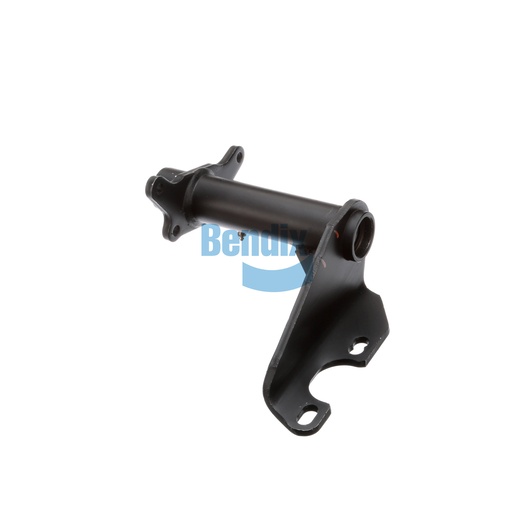

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential part of the foundation drum brake system, designed to provide robust support for brake components. With its single gusset and full arm style, this assembly ensures optimal stability and alignment, which is crucial for effective braking performance. The nylon bushings enhance durability and reduce wear, making it ideal for heavy-duty applications. Engineered for easy installation, the bracket assembly is a vital component for maintaining the safety and functionality of your vehicle's braking system. With a net weight of 6.1 kg, it meets the demands of commercial vehicles, ensuring reliable performance under challenging conditions. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, delivering high-quality components tailored to your commercial vehicle requirements.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.55 lb
